Aeration system

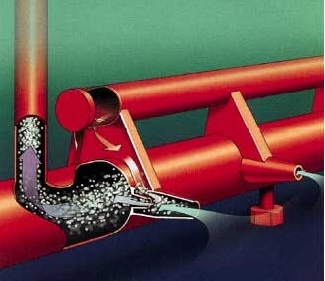

The MTS Jet Aeration Systems are available with a flushout system, eliminating the costly requirement of basin drainage or aerator retrieval throughout the expected service life. Flushouts are used to unclog plugged aeration nozzles. The principle of operation is similar to that of an airlift pump and results in a powerful reverse flow through the jets, exiting a riser pipe attached to the liquid manifold. A typical flushout operation takes only five minutes and one person to perform it.
North American Filtration
Fall River, MA
Tel: 508-679-6770
Web: www.mtsjets.com
Level logger
The Model WL15 water level logger from Global Water Instrumentation is designed for measuring groundwater, surface water, flumes, weirs, tidal studies, wastewater, and psi. The logger can keep 24, 400 recordings in memory, has a real-time display, and features linear, logarithmic and event-based logging. It comes with new Global Logger software. The datalogger is housed in a stainless steel enclosure and has a diameter of 1 7/8 in. A logger cap will hold the WL15 at the top of a well and allows a locking pipe cap to fit into place for security. The level sensor is housed in 3/4 in. stainless steel shell.
Global Water Instrumentation
Gold River, CA
Tel: 800-876-1172
Web: www.globalw.com
Network box
In-Situ has introduced the Quad-Box, a network communications box for use with the miniTROLL line of intelligent probes. The box adds a number of degrees of functionality to a network setup, while actually decreasing the cost in many cases. The box allows up to four miniTROLL .72 in. diameter smart probes to be connected to one central node in a network chain of as many as 32 connections. In this scenario, the cost of networking is driven down by eliminating the need for separate T-Boxes on each probe, as well as eliminating the ancillary networking cable. The Quad Box also was designed to help with lightning suppression.
In-Situ Inc.
Laramie, WY
Tel: 800-446-7488
Web: www.in-situ.com
Data management
Collect XLtrademark v5.0 from Labtronics provides integration between laboratory instruments and Microsoft Exceltrademark, the most popular spreadsheet application for managing laboratory data. Data collection and communication with instruments is controlled from within an Exceltrademark worksheet by the Collect XL floating toolbar. Several instruments can simultaneously send data into one spreadsheet or even into multiple spreadsheets. The software's date and time macro automatically stamps incoming data with a date and time verification.
Labtronics Inc.
Guelph ON Canada
Tel: 519-767-1061
Web: www.labtronics.com
Speed reducers
TRANSCYKORegistered provides wide range speed reducers in combinations of sizes, ratios, input power, mountings and configurations to meet speed reduction system requirements. High reduction ratios of 6:1 through 119:1 per stage through 7569:1 double and triple reductions are available. Input horsepower ranges from 1/16 to over 200 HP and output torque exceeds 6,000 Kg-m (500,000 in. lbs.). The company offers a wide variety of horizontal and vertical mounts with various IEC/NEMA input adaptors for maximum installation ease. The cycloidal design offers advantages over conventional gear tooth design. Many cycloidal teeth share the load and transmit torque by rolling from one element to another. This design eliminates sliding friction and creates a vibration-free operation.
Hyatt TSC Reducers Inc.
Vancouver, British Columbia, Canada
Tel: 604-736-7301
Web: www.hyatt-transcyko.com
Variable speed drive
Micropump offers a variety of drive options, including new console and modular units. These drives fit a wide range of leak-free, magnetically driven pumpheads and feature programmable, remote and manual control options to provide pulseless, variable fluid delivery for any application. The company's new MPD 55 and 55D console drives feature a motor and controller built into an IP55 rated enclosure. Both new console drives offer remote control using analog or digital signals, as well as manual speed control for added flexibility. The 55D has a digital display and keypad-operated controller that can be programmed for volumetric or interval dispensing.
Micropump, Inc.
Vancouver, WA
Tel: 360-253-2008
Web: www.micropump.com
Signal conditioner
Omega's Model FLSC90-A fiber-optic signal conditioner has been designed to interface directly with the company's FP-9000 and FP-9000A series Lightspeedtrademark paddlewheel flow sensors. The FLSC90-A provides a high intensity light source to the patented paddlewheel sensor through a semi-flexible duplex fiber-optic cable. Returning light pulses are measured and converted by the signal conditioner's electronics to a scalable analog output that is proportional to the flowrate. The ability of the paddlewheel flow sensor to operate in harsh and heavy electrical noise environments via the fiber optic cable link makes this system ideal for such applications. The industry standard 4-20 mA or 1-5 vDC analog output can connect directly to many of Omega's process meters, controllers, dataloggers or data acquisition systems.
Omega Inc.
Stamford, CT
Tel: 800-848-4286
Web: www.omega.com
Wireless monitoring

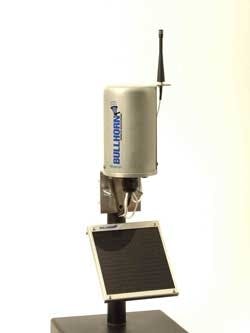

Bullhorn, American Innovations' new low-cost wireless monitoring system, checks inputs from equipment remotely and provides automatic notification of alarm events by fax, page and/or email. The system can monitor water/wastewater-related equipment including lift station pump status, lift station power, effluent overflow, pressure and temperature. It reads electronic flow meters and more. The system uses the MicroBursttrademark wireless network from Aeris.net to transfer information from remote equipment to a central database on the Internet. Users can access the information via secure long-in, or via alarm notification.
American Innovations
Austin, TX
Tel: 512-249-3400
Web: www.aimonitoring.com
Design software
Hydromantis has released software named CapdetWorks for the design and costing of wastewater treatment plants. The software is a planning level design and costing tool that allows the user to drag-and-drop unit processes to build a wastewater treatment plant schematic, automatically calculate a design and then estimate the cost to build, operate and maintain the facility. At the planning level, current engineering practices primarily use empirical modeling techniques in combination with cost databases.
Hydromantis, Inc.
Hamilton, Ontario, Canada
Tel: 905-522-0012
Web: www.hydromantis.com
Wireless monitoring
Simpson Electric Company has introduced the new SE-9000 TeledataRegistered/Data2-Utrademark wireless remote monitoring system. The system is a cellular based solution for the collection and presentation of data over a secure Internet website. It is designed to automatically collect both analog and digital data from sensors on storage vessels and mechanical equipment at time intervals or when a fault occurs. This information is automatically sent by the TeledataRegistered system to the secure Data2-Utrademark website. The data can be viewed and analyzed anytime from the Internet.
Simpson Electric Company
Elgin, IL
Tel: 847-697-2260
Web: www.simpsonelectric.com
Network control system

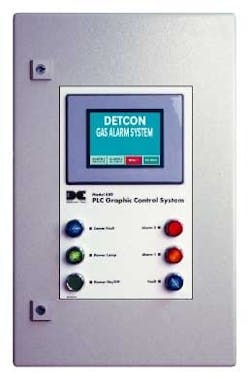

Detcon has introduced the Model 880 Network Control System. It is designed to serve as a host monitoring and control system for serial networks of gas detection and other devices. The unit monitors 80 or more devices, displaying device status, programmable alarm outputs and automatic data logging of alarms and other events to 3.5 in. floppy disk. The controller is equipped with a 5.6 in. color touch-screen display that can be configured to the requirements of any application. Standard configuration includes three status screens. Additional screens are available on request. The system is compatible with SCADA, DCS and PC-based systems and includes 5-amp multi-device power supply.
Detcon, Inc.
The Woodlands, TX
Tel: 888-367-4286
Web: www.detcon.com
Portable drum screen filter
Purestream/Ecofluid introduced its portable drum screen filter for temporary emergency operations or for periodic testing at multiple locations. The filter is capable of handling 120,000 GPD of treated wastewater and will remove up to 95% of total suspended solids. The easy to plug-in, self-contained unit is completely equipped with all necessary tools for set-up and maintenance, even including a feed pump. Various membrane sizes are available and units are offered in 230v, 3-phase operation. The filter is available for purchase or lease.
Purestream/Ecofluid
Walton, KY
Tel: 859-371-9898
Dosing pumps
The MoynoRegistered 500 Series 301 Pumps offer performance and process versatility in corrosive chemical dosing and transfer applications. They feature a reverse covered seal design between the rotor and shaft, which eliminates metal exposure to fluids. Phenolic housings and rotors offer superior corrosion resistance. Hose connections, resilient cushion, and cradle mounting provide easy installation, maintenance and replacement. Suitable for direct or belt drive, the pumps offer capacities ranging from 0.45 to 13 gpm and pressures up to 25 PSI.
Moyno, Inc.
Springfield, OH
Tel: 877-486-6966
Web: www.moyno.com
Biological enhancement
B600 is a biological product specifically formulated to be effective in enhancing municipal wastewater biology in lagoons. B500 is formulated for the same purpose but during colder winter months. These two products have been developed to include 14 strains of bacteria, which have been selected for their ability to perform under both aerobic and anaerobic conditions, and to biodegrade organic material comprised of proteins, fats, carbohydrates and select hydrocarbons.
Bio-Systems Corporation
Roscoe, IL
Tel: 800-232-2847
Web: www.biobugs.com
