Endress + Hauser
Greenwood, IN
Tel: 800-428-4344
Web: www.us.endress.com
Environment One Corp.
Niskayuna, NY
Tel: 518-346-6161
Web: www.eone.com
Microtel Inc.
Chalmette, LA
Tel: 504-276-0571
Web: www.microtel-inc.com
GE Fanuc Automation
Charlottesville, VA
Tel: 804-978-5000
Web: www.gefanuc.com
null
Power monitoring
Power Measurement introduced the 6200 ION three-phase power and energy meter. At just four inches wide and two deep, the meter offers a full range of measurements and communications options, including Modbus support. It is ideal for sub-metering, energy cost tracking, load profiling and more. It can be integrated with power distribution assemblies or building automation systems. It is easy to wire and mount, and requires minimal setup. New features can be added by plugging in the company's feature packs. The packs can provide enhanced communications, data logging and input/output options.
Power Measurement Inc.
Saanichton, BC, Canada
Tel: 250-652-7100
Web: www.pmi.com
Sensors
Two new sensors have joined Rosemount Analytical's Variopol family. The Model 389VP and the 399VP offer the Variopol connector option that makes them simpler to install, service and replace. Both models come housed in molded TefzelRegistered bodies. The Model 389VP features viton O-rings for virtual indestructibility and chemical resistance. The complete encapsulation eliminates leakage or high-humidity problems found in other pH/ORP designs. The design does not require electrolyte (KCl) replenishment or any high-maintenance troubleshooting procedures. The integral preamplifier provides noise-free long distance transmission of the high impedance pH signal.
Rosemount Analytical Inc.
Irvine, CA
Tel: 949-863-1181
Web: www.RAuniloc.com
pH process control
Analytical Measurements offers its four-point Recorder-Controller Unit (Model RC4) designed for monitoring and controlling either pH or ORP. The unit's four-point controller allows for two low scale and two high scale set points. They can be used to operate dosing pumps, samplers and alarms at predetermined set points. Options include digital display, 4-20 mA output, and various pH and ORP probes to meet operating conditions.
Analytical Measurements
Hillside, NJ
Tel: 800-635-5580
Web: www.analyticalmeasurements.com
Data management
OPS Systems announced the release of OPS 32TM. This software builds on the success of OPS WiNTM software for water & wastewater strategic data management. Now available in 32 bit for increased speed and performance, the program interfaces with SCADA to manage data and produce regulatory and summary reports. The program outputs graphs with analytical and statistical process control tools. New features include hourly data, text variables, bench sheet calculations, and improved handling of changing permit limits and MDL's.OPS Systems
Rio Rancho, NM
Tel: 800-677-0067
Web: www.opssys.com
Wireless Autodialer
Mission Communications manufactures a wireless, autodialer-like, cellular control, channel-based SCADA system. It works where regular cellular doesn't and requires no phone lines. The RTU has eight digital, two analog and one pulse counter inputs. It also has three outputs, monitors three pump run times and has an electronic key reader to track which maintenance personnel are on site and when. Alarms or status data go to phone (custom voice messages), fax, pager and e-mail all with receipt confirmation. Data also logs at a personal web site and directly to the control room HMI. The system also includes weekly management reports.
Mission Communications
Atlanta, GA
Tel: 877-993-1911
Web: www.123mc.com
Data collection
In-Situ has launched the Pocket-Situ, a combination handheld data collection computer and Personal Digital Assistant (PDA). The device will allow for data collection, device programming and PDA capabilities, using the Compaq Aero Pocket PC. The company designed the system to satisfy the increase in deployment of multiple pressure and temperature probes. The Pocket-Situ PDA software is built around the Windows CE platform. The Compaq Aero was chosen for its outdoor readability, features and low price. The Pocket-Situ software is derived from In-Situ's Win-Situ 2000 software. The unit supports the In-Situ miniTROLL, TROLL 4000, Multi-Parameter TROLL 8000 and Hermit 3000, as well as upcoming product releases from In-Situ. It features a tree organization of instruments, parameters and tests with wizards to guide every operation.
In-Situ Inc.
Laramie, WY
Tel: 307-742-8213Web: www.In-Situ.com
Adapter cards
Opto 22's Peripheral Component Interconnect (PCI) compatible adapter cards, the PCI-AC28 and PCI-AC5 are suitable for applications that are replacing older ISA bus-based computers with PCI-based computers. The new adapter cards offer expanded operation with the faster 33-MHz PCI bus interface, using high-speed 32-bit access. The free developer toolkits eliminate the need for separate driver programming. The PCI-AC28 installs into any PCI expansion slot on the computer. Up to 32 cards per PC are supported by the toolkit, providing up to 16,384 points of digital I/O from a single computer. The PCI-AC5 provides interface between personal computers and the Opto 22 digital I/O racks and can read/write points more than 100 times faster than previous ISA-based adapter cards.
Opto 22
Temecula, CA
Tel: 800-321-OPTO
Web: www.opto22.com
Remote terminal unit
Industrial Control Links' ICL-4150 "RTU in a Brick" consolidates into a single instrument a fully integrated RTU, data logger and alarm dialer that solves the problems of process monitoring, compliance recording and maintenance support. No larger than the size of a building brick, the ICL-4150 can be ordered with an internal spread spectrum radio, simplifying integration of radio based systems. A WindowsRegistered-based software "toolbox" allows for "point & click" set up, either locally or over the communications link. The unit is supported by all leading SCADA and DCS software packages.
Industrial Control Links
Auburn, CA
Tel: 530-888-1800
Web: www.iclinks.com
Ethernet switch
BUSWARE Direct
San Diego, CA
Tel: 877-BUS-WARE
Web: www.buswaredirect.com
Loop tuning software
Intune loop tuning software now comes with an optional OPC driver. The new standard in communication protocol, OPC (OLE for Process Control) makes it easier to access data. This adds to the ease of using the software to generate PID parameters automatically, to re-tune a loop for optimal performance or even to monitor a complete system comprised of multiple PID loops to determine how the system is being controlled. The modular format is designed for process control. Users can log data, view multiple loop event logs, analyze error distribution curves, model and simulate process loops and even switch a loop to Intune's advanced adaptive tuning without disturbing the process currently running. The software is available in either single- or multi-loop configurations.
ControlSoft
Cleveland, OH
Tel: 216-397-3900
Web: www.controlsoft.com
Data logger
Through technological advances, Solinst has released a new lower cost Levelogger. It fits in the palm of the hand and offers the same high quality datalogging capabilities as previous models. The unit is a datalogger, pressure transducer and temperature sensor. It comes with an 8 to 10 year battery and is self-contained in one 7/8" x 4.92" probe. The factory sealed design eliminates the need for electrical cable, although direct read cables are available.
Solinst Canada Ltd.
Georgetown, ON, Canada
Tel: 905-873-2255 or 800-661-2023Web: www.solinst.com
Collection system management
ADS has introduced IntelliScan, a comprehensive information management tool which provides communities with round-the-clock operational intelligence on the status of wastewater collection system networks. It fully automates the acquisition, storage and display of information by connecting sewer flow meter, rain gauge and lift station measurement devices to a central station server/computer. It provides in-depth tracking, analysis and alarming capabilities and displays performance indicators through a series of screen maps representing basins within the collection system. Various screens offer comprehensive graphs, reports and charts for each monitoring point in the system. IntelliScan's artificial intelligence (AI) function 'learns' flow trends and compares current values with historical norms.
ADS Environmental Services
Huntsville, AL
Tel: 800-633-7246
Web: www.adsenv.com
Data logging control panel
SJE-Rhombus
Detroit Lakes, MN
Tel: 218-847-1317
Web: www.sjerhombus.com
Digital map product
The geographic data provider i-cubed has introduced the Instant ImageryTM USA Millennium Mosaic, the first seamless color satellite image mosaic of the continental United States produced at 15-meter spatial resolution. The company is making this digital image map available to environmental monitoring and planning customers for use as an accurate and inexpensive basemap for their GIS and automated mapping applications. The mosaic image is composed of over 450 individual LandSat 7 satellite scenes digitally stitched together, color-balanced and incorporated into an image delivery linked database. Portions of the image map can be purchased by the city, county or other area of choice, priced by the square mile. Image samples are available.i-cubed
Fort Collins, CO
Tel: 800-472-8328
Web: www.i3.com.

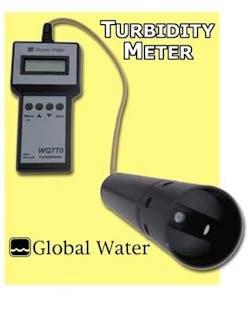

Interfacing turbidity sensor
The new Global Water 770 Turbidity Meter features a highly accurate ratiometric submersible sensor for field measurements of turbidity in stormwater, wastewater, groundwater and surface water. The meter's battery powered display features auto-calibration and direct readout in NTU and ppm. The sensor is available without display for interface to dataloggers, SCADA and process control systems.
Global Water Instrumentation
Gold River, CA
Tel: 800-876-1172
Web: www.globalw.com
Surge suppressors
The SLT Series of transient voltage surge suppressors from Meter Treater is designed for standard low speed data (25mhz max) communication and signal line protocols. Units provide protection against transient voltages that exceed nominal operating voltage. Each line is protected against surge current impulses up to 10kA, based upon specific circuit configuration. The suppressors work in series with the communication lines being protected, diverting harmful transient energies to ground while maintaining a tight clamp at the peak operating voltage. Units operate over a wide temperature range and can be configured for many specific EIA protocols by varying circuit components.
Meter Treater, Inc.
Lake Park, FL
Tel: 561-845-2007
Web: www.metertreater.com
Web-based data management
Maintenance Strategies Inc. (MSI) and ABB Canada have announced an agreement to develop a long-term strategic relationship for delivering MSI's WebView 2000TM systems and solutions to the Canadian marketplace. WebView is a web-based Data Management System which automates the collection, analysis, and management of inspection, testing, and diagnostic information on physical plant assets. Its platform integrates islands of information into a central warehouse, and provides knowledge-based decision tools for converting that data into useful information and assessing asset condition and maintenance needs. The system has built-in interfaces to mobile devices for automating data collection processes, and is the first ASP Solution specifically targeted to improving equipment reliability, optimizing maintenance and reducing O&M costs.Maintenance Strategies, Inc.
Eddystone, PA
Tel: 610-662-0449
Web: www.msicorp.com
Serial I/O server
Advanced Telemetry Systems International (ASTI) is offering a Wonderware InTouch serial I/O server for the ATSI Kingfisher Series II Intelligent RTUs. The server is a combined NetDDE and Wonderware Suitelink server. It reads event log data through specific topics configured for this purpose. Real-time data is accessed through real-time topics. Advantages offered over the standard Modbus I/O server include increased speed of processing data values for faster HMI display screen updates and the ability to take advantage of the RTU's event logging features and incorporate them into the InTouch display screens.
Advanced Telemetry Systems Int., Inc.
Escondido, CA Tel: 760-738-6804
Web: www.atsionline.com
Compressed cylinder system
Robo-Control offers two models of its SCADA compatible, automatic system for discharging compressed chlorine or sulfur dioxide gas cylinders. The system includes an electric motor that rotates the valve stem toward the open or closed position without interfering with or requiring additional adapters for dispensers or discharging hardware. The motor, gears and controls are assembled as one unit eliminating the necessity for a separate control panel or interconnecting control wires. The system requires only a flexible power cord for trickle charge of the battery, which makes the valve totally portable for ton cylinders. Monitor and controls are accomplished through an on-board microprocessor with integral LED displays for Closed, Align and Open indicators. Inputs for remote control include "close" and "open". Outputs for remote indication include "valve open", "valve closed", "failure", "leak" and "low battery." The unit features a NEMA 4X enclosure, a programmable leak detector and available materials include fiberglass, stainless steel, steel, brass and RF nylon.
Robo-Control
Bridge City, TX
Tel: 409-697-2666
Web: www.robo-control.com
CFD software
AEA Technology has released the latest version of its computational fluid dynamics (CFD) software, CFX-5. This version slashes the computing time usually associated with CFD software. It combines direct CAD import, automatic adaptive meshing and CFX's unique Coupled Algebraic Multigrid solver where flow equations are solved simultaneously. This latest version extends the unique coupled technology of CFX-5 to multiphase flows. The multi-phase flows module gives a technology which is orders of magnitude faster in predicting chemical engineering process flows, than anything previously available.
AEA Technology
Bethel Park, PA
Tel: 800-529-3810
Scada system
ADI International offers turnkey SCADA systems which are tailored to the unique requirements of small and medium sized water and wastewater treatment utilities. SCADA systems are developed using non-proprietary, off-the-shelf hardware and software with a view toward low cost, simplicity, functionality and maintainability by the owner. The company offers a choice of hardware/software type and hardwired or radio based telemetry; radio propagation testing; FCC licensed or spread spectrum radio; on-site start-up support; operation and maintenance training and on-line operational support.
ADI International Inc.
Fredericton, NB, Canada
Tel: 506-452-9000
Web: www.adi.ca

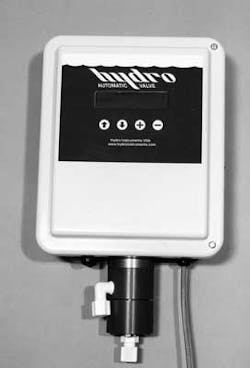

Automatic valve
Hydro Instruments released a new automatic valve for flow proportioning, residual control or compound loop control of vacuum gas chlorination and sulfonation systems. The Hydro Automatic Valve is enclosed in a NEMA 4X enclosure with a compact design. It is microprocessor based, keypad controlled and has an alphanumeric, two-line, 20-digit display. The display will indicate gas flow in four different units (%, PPD, gr/h and kg/hr). In any control mode, the valve can be switched to manual control where gas feed rate can be set through the keypad interface.
Hydro Instruments
Quakertown, PA
Tel: 215-538-1367
Web: www.hydroinstruments.com
Monitoring system
The SensaphoneRegistered SCADA 3000 from Phonetics is a comprehensive monitoring, control and communication solution, complete with all the features water plant operators need to program and control plant conditions. Expandable to 144 I/O, the system uses analog or digital inputs, pulse count, thermocouple or analog & relay outputs. With its built-in alarming, the system can contact operators via voice, pager, fax, modem and e-mail. It also can be web-enabled. The system comes with a 32-bit SCADA software system. Capabilities include: a real-time screen builder, program editors, alarm functions and a communications manager. It allows users to program units, develop "C" or Ladder programs, retrieve data, analyze event logs and print a variety of reports on monitored conditions.
Phonetics, Inc.
Aston, PA
Tel: 610-558-2700
Web: www.sensaphone.com
Chemical information
The newly updated Toxic Substances Control Act (TSCA) Chemical Inventory of more than 64,000 chemicals is now available, cross-referenced with SARA Title III RCRA reporting requirements, on the latest edition of a CD-ROM from Solutions Software. The "TSCA Chemical Database plus SARA III" CD-ROM costs $92 for a current edition, or $128 for an annual, 2-issue subscription. Only one license per LAN server or per stand-alone PC is required. The updated TSCA database features the latest public information available from the U.S. EPA on all chemicals or chemical substances manufactured or imported into the U.S. for commercial purposes as defined under the TSCA.
Solutions Software Corporation
Enterprise, FL
Tel: 407-321-7912Web: www.env-sol.com

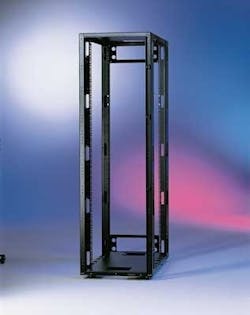

Enclosure system
Liebert Corporation
Columbus, OH
Tel: 216-621-5133Web: www.liebert.com
Mapping software
Spatial Data Integrations has released WaterWorks/FMTM digital mapping software designed for water utilities. The application is aimed at making GIS and facility management affordable to virtually any water utility. It has an interface that makes it simple for someone with little or no knowledge of GIS (or computers) to accurately enter pipelines, valves, fittings, meters and other items into an automated system. Once this information is captured, the analytical tools of a GIS enable the utility to perform routine or complex analyses of its operation. In addition, other utility information files, including customer, billing, accounting, SCADA, etc., can be placed "on the map" making the data available by clicking a point or posing a question to the system. The software has a Windows interface and can be used to map current locations of wells, water tanks, mains, hydrants, valves, service lines, fittings, customer meters and more. Automated drawing aids simplify adding new features to maps. Elevation information is automatically added for each node in the system.Spatial Data Integrations
Louisville, KY Tel: 502-568-2591
Web: www.waterworksfm.com
Management software
GBA Master Series has formed an infrastructure planning business alliance with Black & Veatch Corp. The company's Infrastructure Management Software is a suite of products used to manage and maintain water, storm water, wastewater, and street systems. It can be used to prioritize maintenance and rehabilitation tasks, analyze current and historical data to identify system trends, and to recommend comprehensive budget forecasts. As part of the alliance, the Infrastructure Planning Department of Black & Veatch will integrate several modules of the software suite into planning project execution. Those modules include Sewer MasterRegistered, Water MasterRegistered, GIS MasterRegistered and related toolkits.
GBA Master Series
Lenexa, KS
Tel: (800) 492-2468
Web: www.gbamasterseries.com
Lighting arrestor
Phoenix Contact offers a direct strike lightning arrestor that combines high energy current handling with low voltage protection level. The new Flashtrab Plus Control lightning arrestor shunts 50 kA of surge current as tested to the long duration IEC 61312 10x350 mS lightning test waveform. The surge current is dissipated while holding the residual voltage below 900 Volts. The unit is available in a space saving DIN rail mount package ideal for wireless communication OEMs. The lightning arrestor is also available in a NEMA 4 enclosure for indoor or outdoor service.
Phoenix Contact Inc.
Harrisburg, PA
Tel: 800-322-3225
Web: www.phoenixcon.com
Capacitors
PowerCache offers the PC2500, a 2500-farad ultracapacitor designed to supply power to a system during peak loads and outages. Measuring 161x62x61.5 mm, the units cache 7800 Joules of energy at a nominal 2.5 volts for high-powered discharges ranging from fractions of a second to one minute. They provide roughly 10 times the power density of ordinary batteries. The units can provide short-term ride-through power during dips, sags and outages.
Maxwell Technologies
San Diego, CA
Tel: 858-503-5114
Web: www.powercache.com
Wireless monitoring
The R-3300 series remote data acquisition system from Telog measures parameters such as flow and level. The system can provide alarming, paging, continuous monitoring, trend analysis and historical data. It includes a recorder, sensor, power source and communications options including wireless. Telogers for Windows software provides easy recorder programming.
Telog Instruments Inc.
Victor, NY
Tel: 716-742-3000 Web: www.telog.com
Rate signal generator
The Meter-Master Model 20 rate signal generator offers a solution for flow rate measuring and recording from existing water meters in conjunction with third party telemetry, SCADA and data logging equipment. Especially suitable for permanent flow monitoring installations, the rugged, one-piece device converts any water meter's magnetic drive signal into a high resolution digital (square wave) output compatible with any standard data acquisition hardware. The patented, strap-on magnetic sensor picks up the magnetic pulses generated by a water meter's internal drive magnets without any meter alteration or service interruption.
F.S. Brainard Co.
Burlington, NJ
Tel: 609-387-4300
Web: www.meter-master.com
Data logger
SCADAPack from Control Microsystems now includes a utility for logging data. Applications include backup of process data in the event of a SCADA system communications failure, as well as conventional recording of historical data. The logging utility, SCADALog, is a Windows application used to upload historical data. Companion tools for the controller simplify the process by which data such as temperatures and pressures are logged and time stamped. The logged data can be imported into spreadsheets and other programs for manipulation. Data may be retrieved over full duplex RS232, half duplex communications for radios and modems and dial-up telephone. It may also be used in conjunction with SCADAServer Host OPC servers.
Control Microsystems
Kanata, Ontario, Canada
Tel: 888-267-2232
Web: www.controlmicrosystems.com
Alarming device
Zetron's Model 1570 SentriData is an alarming device that scans the data stream of monitoring equipment, such as flow or level measurement equipment at remote wells or pumps, and searches for specific messages. With the intelligence to follow established procedures when a particular event occurs, the device notifies a priority list of contacts and forwards a pre-recorded text message or page customized for that alarm. The monitor also reports if there is an unusual period of inactivity.
Zetron, Inc.
Redmond, WA
Tel: 425-820-6363
Web: www.zetron.com
Communication system
American Grassroots has introduced the People MoverTM interactive mobilization system, a software package for the drinking water industry designed to automate and expedite grassroots and neighborhood communications such as boil orders and planned service interruptions. The system marries database technology, GIS mapping software and computer-managed telephone messaging. The user can define a geographic area, a few targeted blocks or an entire city, and deliver a recorded message to those within the area.American Grassroots LLC
Indianapolis, IN
Tel: 317-514-8522
Web: www.americangrassroots.com
Remote telemetry
The DiaLog Elite by Antx now can be upgraded with Modbus RTU support to be used as a complete Remote Telemetry Unit and for SCADA applications. The Modbus RTU option allows the unit to perform all the functions of an RTU with the added capabilities of an alarm dialer in one integrated box. The Modbus RTU support can be ordered with a new unit or downloaded over the phone without the need for anyone to visit the remote unit. Using any SCADA package that has Modbus support, users can read and write any input or output value from either a direct serial connection or remotely over modem.
Antx, Inc.
Austin, TX
Tel: 512-255-2800
Web: www.antx.com
Interface detector
The On/Off signal from the DynatrolRegistered DJI Interface Detector operates a SPDT relay in the EC-501A Control Unit. The contacts of this relay can be used to actuate alarms, indicator lights or process control equipment. Requiring no adjustments and having no moving parts, the detectors are virtually wear-free. They operate successfully with consistent results on applications such as carbon/water interface, sand/water interface, catalyst/liquid interface and others.
Automation Products, Inc.
Houston, TX
Tel: 800-231-2062
Web: www.DynatrolUSA.com
Smart actuator
The Sensing and Control Business of Honeywell has introduced the HercuLineRegistered 10260S Smart Actuator, which incorporates the features of Honeywell's HercuLineRegistered actuators with the added benefit of a microprocessor-based Enhanced Electronics Unit (EEU). The actuator offers non-intrusive configuration, assignable relay outputs for remote alarming, and digital input for emergency override. It comes with an alphanumeric LED display and keypad to accommodate configuration and local operator interface requirements for non-intrusive set-up. The EEU makes set-up and maintenance easier as well as allowing the user to monitor the health of the actuator for proactive maintenance planning.
Honeywell Sensing and Control
Freeport, IL
Tel: 800-784-3011
Web: www.honeywell.com/sensing
Web based tool
Fluke offers a Web-based query tool that allows users of MET/CALRegistered and MET/TRACKRegistered software to retrieve data using a browser, over the Internet or through the user's intranet. Its Metrology XplorerTM web server allows the user to track equipment location, users and status, see when equipment was last calibrated and when it is due for its next calibration and examine calibration results. Additionally, the server can make selected data available to customers or to other departments. The tool can be used with any computer connected to the Internet, using commonly available web browsers like Netscape NavigatorRegistered or MicrosoftRegistered Internet Explorer.Fluke Corporation
Everett, WA
Tel: 888-308-5277
Web: www.fluke.com
Ethernet-based SCADA
The new NL100 Network Link Interface brings Ethernet communication to Campbell Scientific SCADA systems. The interface is a 10baseT Ethernet communication peripheral that allows Campbell Scientific measurement and control units to communicate over local area networks or dedicated Internet connections using TCP/IP. In addition to Ethernet, the company's systems can communicate via many other methods including telephone (land-line, cellular, or voice-synthesized), radio, short haul, and satellite. Because they have their own operating systems, the measurement and control units can be programmed, without ladder logic, to perform advanced functions.
Campbell Scientific, Inc.
Logan, UT
Tel: 435-753-2342
Web: www.campbellsci.com
Input module
Action Instruments offers AI3, a three-channel analog input module for the AIOS 2500 Controller. It sources individually isolated loop power for two wire transmitter inputs or sinks the mA signal from externally powered loops. The module provides up to 16-bits of resolution. Termination boards are available with quick disconnects for removing each channel of the AI3 from its current loop. The Action I/O System 2500 (AIOS 2500) is an intelligent distributed control, signal conditioning and alarm system that communicates on ModbusRegistered RTU or ProfibusRegistered DP networks. It can operate as a stand-alone controller or as distributed I/O in a SCADA system.
Action Instruments
San Diego, CA
Tel: 800-767-5726
Web: www.actionio.com
