Oxygen deficiency detector

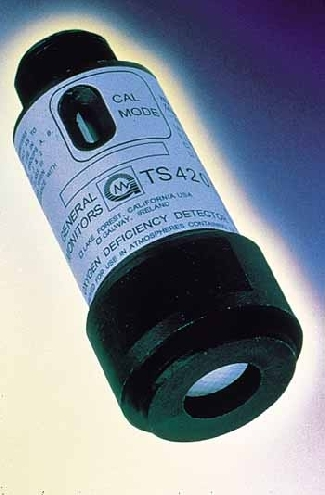

Designed to monitor and detect oxygen depletion continuously in tightly confined spaces, the new TS420 Oxygen Deficiency Detector from General Monitors is offered in one of the industry's smallest packages: 1.75 by 4.5 inches. It features an electrochemical cell sensing element and adjustment-free calibration. A two-wire loop-powered 4-20 mA analog output signal provides remote alarm and fault indications, as well as eliminates the need for an output loop supply. The unit's LCD shows status, fault and calibration cues.
General Monitors
Lake Forest, CA
Tel: 949-581-4464
Web: www.generalmonitors.com
Data management
WaterTrax, www.watertrax.com, is an interactive website for monitoring and managing drinking water quality data and water utility operating information such as water demand. The Subscriber Service is now available, allowing for personal data input and associated jurisdiction advisory notices, linked to a Subscriber's water testing results. Subscribers are able to enter their own water quality and operating data, and then compare those results against the drinking water quality standards for their state or province. If any results do not meet the relevant standards, then an alert will be sent to the water system operator. The site provides organized and relevant content based on a subscriber's particular regulatory needs.
WaterTrax Inc.
Vancouver, BC
Tel: 604-519-4959
Metering pump

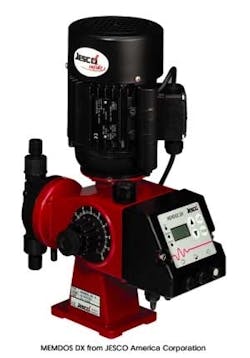

JESCO America has introduced the MEMDOS E/DX, a new line of mechanical diaphragm, chemical metering pumps. These motor-driven pumps suit a wide range of applications, due in part to their small footprint and high suction lift capabilities. The MEMDOS line is available in two versions: the manual E and the intelligent DX. The DX version adds internal microprocessor control for up to 1400:1 turndown. The NEMA 4x enclosed electronics provide the choice of manual or external control by pulse, multiplication/division or analog/4-20 mA. Remote Start/Stop capabilities and input signal monitoring and output alarms are available. By integrating speed control, the DX eliminates the need for external variable speed controllers. Control is achieved via touch pad keys and LCD display. Capacities are available up to 92 gph and pressures up to 150 psig.
JESCO America Corp.
Rochester, NY
Tel: 800-554-2762
Web: www.jescoamerica.com
Chemical dispensing

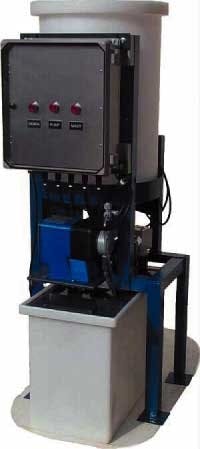

Well-Guard II is the smallest chemical dispensing system offered by Engineered Water. This batch process system has a footprint measuring just under 22" x 29", and standing 59" tall. It is designed to automatically maintain constant chlorine injection using granulated calcium hypochlorite. The system holds up to 270 pounds of cal-hypo. It can handle other chemical dispensing chores as well, including dosing of potassium permanganate.
Engineered Water
Sacramento, CA
Tel: 916-925-3887
Marker system
The Intelligent Marker System (IMS) from Radiodetection provides a means of storing and retrieving field-related information at a site. Small, brightly colored read and write devices are secured to marker poles or posts. A lightweight handheld unit reads/writes information to the markers. Both pre-recorded and free-form messages can be used, and retrieved data can be uploaded to a PC.
Radiodetection Corp.
Mahwah, NJ
Tel: 800-524-1739
Tubing pumps
Cole-Parmer has added a new line of peristaltic pumps, the Manostat tubing pumps. The pumps offer flow rates from 0.0012 to 5000 mL/min and dispensing volumes from 0.5 ml/cycle to 1700 mL/cycle. Single, multi-channel, analog and digital units are available. The pumps accept a range of chemically compatible tubing in six sizes. Each pump comes with a single pump head that accomplishes the full range of flow. All units are UL, cUL and CE approved.
Cole-Parmer Instrument Co.
Vernon Hills, IL
Tel: 800-323-4340
Web: www.ColeParmer.com
Handheld meter reading
Itron recently launched its new G5 handheld computer, a new generation of technology designed to set a standard for handheld meter reading performance. The unit brings together the latest component technology and functionality to provide meter reading performance and processing speed in a smaller-than-ever package. The full-duplex radio uses digital signaling and correlation technology to slice through radio noise levels and enhance radio-reading performance. A new power management system allows the operator to read more meters for a longer period without recharging the battery.
Itron
Spokane, WA
Tel: 509-924-9900
Web: www.itron.com
Engine oil filter
Waukesha Engine has introduced a new, synthetic Microglass oil filter element option for use with its MicrospinRegistered oil filtration system. The new element can extend the oil filter change interval on the company's VHPtrademark engines to 4000 hours. The Microspin system combines a centrifuge and cleanable stainless steel elements to filter engine oil. The Microglass media is a man-made, synthetic material that has a high dirt-holding capability and is resistant to physical breakdown.
Waukesha Engine
Waukesha, WI
Tel: 262-896-4929
Web: www.waukeshaengine.com
Lining system
EnviroChem has announced ANSI/NSF 61 approval for potable water of its EnviroLastic AR 520 PW polyurea lining system. The system has also passed ASTM C 836 for low-temperature flexibility and crack bridging of moving cracks 1/8" wide at -15 degrees F. The lining is a spray applied, fast cure, seamless, elastomeric system with 520% elongation. It has no VOCs and no odor. It can be applied over concrete, steel and wood, with a gel time of 60 seconds at temperatures of -120 to +300 degrees F. Applications include use in reservoirs and processing areas for drinking water.
EnviroChem Technologies
Fort Worth, TX
Tel: 800-734-0222
Web: www.envirolastic.com
Maintenance software
OPS Systems has released JOB CalRegistered+. The new software builds on JOB CalRegistered, maintenance software. It was designed to be simple and has fewer features that other maintenance software programs. Software programs that are too complicated never get used, the company said. Inventory, Vendors, Purchasing, Labor and Graphics now have been added while maintaining the program's unique simplicity.
OPS Systems
Rio Rancho, NM
Tel: 800-677-0067
Web: www.opssys.com
Weight scale

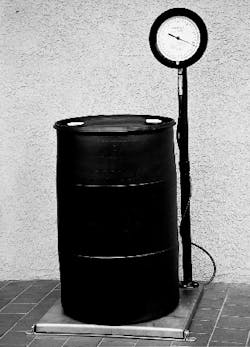

The CenturyRegistered Drumm-Scale from Force Flow can be used to monitor usage of chemicals fed from day tanks. The scale's analog dial indicates how much chemical remains, and helps predict fill or change-out times. The system does not require power. It is available with an epoxy coated finish or in 316 stainless steel. Its low-profile platform is designed for easy loading of tanks. The scales are available with a 4-20 mA transmitter for remote monitoring and level alarms.
Force Flow Equipment
Concord, CA
Tel: 800-893-6723
Web: www.forceflow.com
Data collection
In-Situ has launched the Pocket-Situ, a combination handheld data collection computer and Personal Digital Assistant (PDA). The device will allow for data collection, device programming and PDA capabilities, using the Compaq Aero Pocket PC. The trend toward multiple deployment of pressure and or temperature probes at the same site constantly has been moving upward, creating the demand for lightweight, portable, and robust data collection devices, according to the company. The Pocket-Situ PDA software is built around the Windows CE platform. The Compaq Aero was chosen for its outdoor readability, features and low price. The Pocket-Situ software is derived from In-Situ's Win-Situ 2000 software. The unit supports the In-Situ miniTROLL, TROLL 4000, Multi-Parameter TROLL 8000 and HERMIT 3000, as well as upcoming product releases from In-Situ. It features a tree organization of instruments, parameters and tests, with wizards to guide every operation.
In-Situ Inc.
Laramie, WY
Tel: 307-742-8213
Web: http://www.In-Situ.com
Mud recycler
American Augers offers a full-featured mud recycling system for use with any brand of directional drill which uses 80 to 100 gallons of mud per minute. The MCM-1000B can process up to 160 gallons per minute and has a tank capacity of 1,000 gallons. Accumulated solids in the bore often is given as one key reason for stuck drill pipe. A high volume of clean mud will float solids to the surface for disposal. Mud recycling increases the success rate of bores, reduces the expense for bentonite and helps maintain a tidy job site. The recycler uses a linear motion shaker to separate out sand, grit and other solids from the drilling mud.
American Augers Inc.
West Salem, OH
Tel: 419-869-7107
Web: www.americanaugers.com
Flowmeter
Endress+ Hauser offers the new Proline generation Promass 40E Coriolis mass flowmeter. The compact meter measures mass or volume flow with a wider measuring range, reduced cost, more signal transmission flexibility, a local display and long-term stability. It caries 3-A authorization for use in sanitary environments and is available with intrinsically safe outputs for hazardous locations. The meter comes with FieldTool software for configuration and setup.
Endress + Hauser
Greenwood, IN
Tel: 800-428-4344
Web: www.endress.com
Drum support
Drum Runner has introduced a new pneumatic drum support assembly for its Model 550 drum handler product line. The support includes an integrated joystick control so the user can adjust the width of the unit's clamping jaws in seconds to securely grip drums of differing diameters. The handler lifts steel, plastic and fiber drums weighting up to 1,000 pounds. It features a heavy-duty carbon-steel frame, 8" roller-bearing casters and a pneumatic lifting cylinder. An optional built-in scale is available.
Drum Runner Material Handling Co.
Columbus, OH
Tel: 800-378-6786
Web: www.drumrunner.com
Thermometer
Control Co. offers a TraceableRegistered Thermometer that displays current, minimum and maximum temperatures, plus captures and shows the exact time and date when the minimum/maximum occurred. The thermometer has a range of -40 to 176 degrees F with a resolution of 0.5 degrees and an accuracy of +/- 1 degree C. It displays 3/8" high digits to show ambient or probe temperature, time of day and month/day. The thermometer is supplied with a flip-open stand for the bench, a slot for wall mounting and VelcroRegistered to attach to any surface.
Control Company
Friendswood, TX
Tel: 281-482-1714
Web: www.control3.com
Video pipeline inspection
Pearpoint offers video pipeline inspection technology, including custom-built inspection vehicles equipped with the P494 Pan & Tilt camera, and various tractors, including the P448 steerable tractor. The company also offers the P455 DualView, P372 Auto-Upright ELS and P373 Mini-Cam cameras and Flexidata pipe survey reporting software.
Pearpoint, Inc.
Thousand Palms, CA
Tel: 760-343-7350
Web: www.pearpoint.com
PVC fittings
New 10" and 12" molded PVC DMV tees and bends now are available in the "D" series from Plastic Trends. The solvent-weld sockets have molded-in pipe stops to assure positive sealing. They are tested for impact, internal stress and dimensional stability. They are NSF listed and meet ASTM standards.
Plastic Trends Inc.
Shelby Township, MI
Tel: 810-781-2700
Web: www.plastictrends.com
Pipe repair/replacement
Vermeer offers a line of tools for pipeline boring, pipe ramming and pipe pulling. The company's Hammerhead MoleRegistered features high striker weight for increased power, replaceable wear rings to minimize friction and a clamped rear anvil design to provide over 200% more clamp load strength than taper lock designs. The company also offers Hammerheadtrademark pipe pulling accessories and kits for a variety of applications, including HDPE and PVC. Frames and hardware are available for installing 1 1/2" to 6" PVC and thermoplastic tubing.
Vermeer Manufacturing Co.
Pella, IA
Tel: 515-628-3141
Web: www.vermeer.com
Plastic pipe locator
Professional Equipment offers a plastic pipe locator. Plastic pipes and/or concrete pipes are found by the transmission of a nondestructive pressure wave that can be generated up to 500 feet away. The generator can apply pressure to a fire hydrant, water meter base, sprinkler head or special tap into a pipe. Pinpointing information is indicated by the analog meter and headphones, providing both audible and visual signals. The system comes with a 6.2" earth probe, concrete/asphalt disk, headphones, carry case and videotape.
Professional Equipment
Hauppauge, NY
Tel: 800-334-9291
Web: www.professionalequipment.com
Vertical turbine pump
Patterson Pump Company's vertical turbine pumps can be staged as necessary to meet desired pressure requirements. Non-fire pump application capacities range from 500 to 7,000 gpm with up to 700 ft. TDH.
Patterson Pump Co.
Taccoa, GA
Tel: 706-886-2101
Web: www.pattersonpumps.com
Capacitors
PowerCache offers the PC2500, a 2500-farad ultracapacitor designed to supply power to a system during peak loads and outages. Measuring 161x62x61.5 mm, the units cache 7800 Joules of energy at a nominal 2.5 volts for high-powered discharges ranging from fractions of a second to one minute. They provide roughly 10 times the power density of ordinary batteries. The units can provide short-term ride-through power during dips, sags and outages in the main power supply for critical applications.
Maxwell Technologies
San Diego, CA
Tel: 858-503-5114
Web: www.powercache.com
Doors

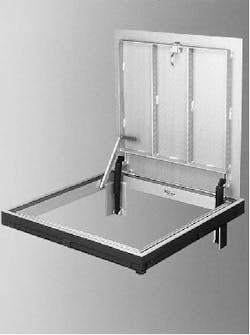

The Bilco J-AL door is corrosion resistant and suitable for both new and retrofit applications. The doors feature debris gaskets that provide proper drainage by reducing the amount of dirt and debris that enters the channel frame. They have adjustable anchor tabs to accommodate virtually any installation, and electrostatically coated springs to protect against corrosion. Forged aluminum hinges and composite spring tubes also are featured.
Bilco Company
New Haven, CT
Tel: 203-934-6363
Web: www.bilco.com
Centrifugal pumps
The new line of end suction thermoplastic centrifugal pumps offered by Vanton Pump are designed for the transfer and circulation of corrosive, abrasive or ultrapure water and chemicals in applications where space is critical. Available with fluid contact parts made of solid, homogeneous polypropylene or polyvinyl fluoride (PVDF), these metal-armored pumps reduce footprint space requirements by as much as 20 percent and are lower in initial cost than conventional foot-mounted models. Designated as Vanton Chem-GardRegistered CGC models, the pumps can be furnished in tangential and centerline discharge configurations.
Vanton Pump & Equipment Corp.
Hillside, NJ
Tel: 908-688-4216
Web: www.vanton.com
Submersible pumps
A newly improved series of automatic submersible pumps has been introduced by the Water Systems Group of Sta-Rite Industries. The Trident 1500 series is UL, CSA and SSPMA certified and is ideal for use in heavy-duty sump, flood control and utility applications. Pump capacities range up to 100 gpm. Features include a 3/4 horsepower motor and a compact design with built-in check valve. The oil-filled, permanently lubricated, water-cooled motor has a built-in thermal overload system. A mercury-free mechanical float switch provides automatic operation.
Sta-Rite
Delavan, WI
Tel: 888-782-7483
Web: www.staritepumps.com
