High-pressure Micro Diaphragm Pump

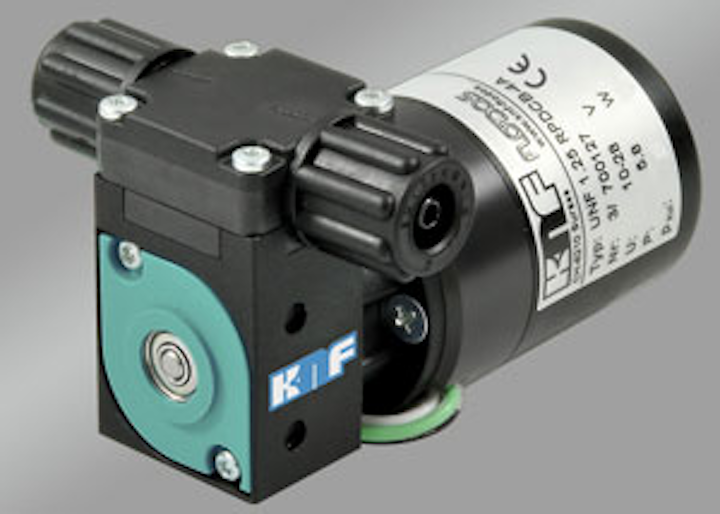

The new KNF "Type NF1.25" micro diaphragm pump introduces a high-pressure solution for dosing or transferring liquids or liquid-gas mixtures at flow rates up to 300 ml/min. The pump is engineered to operate either intermittently or continuously against pressure up to 6 barG (87 psig) over the pump's entire lifetime. Versions can be specially developed to handle even greater pressure up to 10 barG (145 psig).

Typical OEM applications include water treatment systems, fuel cells, and semiconductors, among many others. Type NF1.25 pumps integrate a patented valve system and benefit from sophisticated diaphragm technology to achieve high levels of efficiency.

OEMs can choose from a wide selection of motors, including iron core DC, ironless core DC, or brushless DC (BLDC) versions. The BLDC models can be supplied with simple 2-wire operation or with 4 wires enabling advanced tachometer output and speed control input and a highly linear control curve (flow rate vs. control voltage) allowing for use in closed-loop systems. A wide range of standard voltages and frequencies can be specified.
