Reliant upon China's Dongjiang river basin for the bulk of its water supply, Hong Kong is making plans for a new desalination plant after decommissioning its thermal site over 30 years ago. With predicted costs of HK$12/m3 however, questions have been asked. Tom Freyberg looks into the desalination development, as well as progress of one of the world's largest sludge treatment projects.
Currently the majority of Hong Kong's water (over 70%) comes from the Dongjiang river basin in Southern China. The rest comes from local catchments. An agreement is in place for the Dongjiang water supply but the river flows through Guangdong and industrial demand for this water is high in China.
Hong Kong water demand
In 2012, the total water demand was 1,200 million cubic meters. About 23% of water supply is seawater which is used for toilet flushing. Another 20% is surface rainwater collected from the local water gathering grounds and the remaining is the imported Dongjiang (DJ) water under the DJ Water Supply Agreement.
“Under the current agreement, water imported from Dongjiang is guaranteed to conform to the national standard for Type II waters," says Arlene Goode, associate for energy, resources & industry at Arup in Hong Kong. “Nevertheless, in order to diversify the TWM [Total Water Management] strategy and improvement of HK's own water resources is being implemented. Measures have been taken to ensure the quality of raw water supplied to HK remains at an acceptable level, including relocation of the raw water intake further upstream."
Hong Kong has a relatively high domestic consumption per capita when compared to other developed cities. The cost of water to end users is low – in fact one of the lowest in the world, providing little incentive for end users to reduce consumption.
It was in 2008 that the Water Supplies Department (WSD) implemented its Total Water Management Strategy. This sets out initiatives to reduce and control demand and to develop options for improving water resources.
David Wong, senior engineer at the WSD tells WWi: “To better prepare Hong Kong for uncertainties such as extreme climate changes and low rainfall and being one of the responsible partners to other economic zones in the Pearl River Delta, Hong Kong should investigate and explore alternative water resources in order to mitigate difficulties encountered by our neighbours in Guangdong Province when they face severe droughts, bearing in mind that Hong Kong would also encounter drought at the same moment."
Desalination plans – saying goodbye to thermal
Included in these plans from the Hong Kong government is a 90 million m3/year desalination plant.
The government plans to build a desalination plant in Tseung Kwan O, which is expected to have a unit cost of HK$12/m3. Hong Kong's planned Tseung Kwan O project will be the first desalination facility since the Lok On Pai site, constructed 40 years ago but decommissioned in 1982.
“Hong Kong's previous desalination plant (Lok On Pai) constructed about 40 years ago had adopted the desalination technology of Multi- Stage Flash process which was a high energy consumption process," David Wong, senior engineer at the Water Supplies Department (WSD) tells WWi. “It was decommissioned in 1982 due to its high production cost."
In 2005 Hong Kong's WSD conducted a successful pilot study on reverse osmosis (RO) desalination at Tuen Mun, followed by a second study at Ap Lei Chau. Wong says this “confirmed the technical feasibility of desalination using reverse osmosis under local conditions to produce potable water complying with WHO guidelines".
Completed in 2007, pilot results suggested that the price of desalination in Hong Kong could be between HK$7.8/m3 to HK$8.4/m3. The difference in price however between the cheaper pilot price and the predicted HK$12/m3 has caused a stir in the city. The Hon. Claudia Mo, member of the Legislative Council, has questioned why the price has risen.
In response, Paul Chan, secretary for development of Hong Kong, told the Legislative Council: “Seawater desalination using reverse osmosis technology is now an energy intensive process."
He said: “The current estimated cost of seawater desalination of HK$12/m3 is derived by adjusting the average of the above prices in 2006 (i.e. HK$8.2) upward by 18% [Note: This is based on the changes to the Consumer Price Index (A) in 2006-2012] to account for the inflation from 2006 to 2012, and add the distribution and customer services cost, which have not been calculated in the 2006 cost estimate."
However, Chan added that with the “improvements in related technology", that there could be room for a “downward adjustment in the energy consumption in the desalination process".
The International Desalination Association (IDA) has been quoted as saying that the unit cost for producing potable water by seawater desalination using RO technology varied by country and region, ranging from HK$9.4 to HK$22 per m3.
Improving supplies
According to the WSD, the initial desalination plant will be able to produce 50 million m3/year and will eventually be expanded to 90 million m3/year. Together with collected rainwater and 820 m3 of water from the Dongjiang river basin, this is expected to help Hong Kong meet its potable water demand by 2030.
Wong adds: “As a coastal and well-developed city with scare fresh water resources, Hong Kong has unlimited supply of seawater from the ocean that is not affected by climate changes. Seawater desalination is naturally one of the water supply management measures which could offer a practicable solution to cope with the adverse effect of extreme climate change. We have estimated that with the current DJ water supply arrangement and the proposed Tseung Kwan O desalination plant, we should be able to ensure water supply reliability up to around 2030 even under extreme climate change condition."
Wong believes that Hong Kong will not only become reliant upon water from China and the new desalination plant in the future either. “We anticipate that flushing seawater, surface rainwater collected from local water gathering grounds, imported DJ water and potable water produced by seawater desalination will be our major sources of water supply in the future," he says.
Goode adds: “As part of the TWM strategy, studies have taken place to identify ways of strengthening resources to improve HK's resilience. This includes protecting existing resources by improving collection of surface water run-off, and protecting existing gathering grounds from development. There are also plans to reclaim water for non-potable use and, of course, the potential use of desalination as a treatment process."
WSD says the timetable for the facility will include: 2012-2014 – undertake planning and investigative study of Tseung Kwan O desalination plant and between 2015-2017 – invite tender for construction and seek funds from the Legislative Council. The date earmarked for construction is between 2018-2020.
The secretary for development concluded that alternative sources such as reclaimed water will be reviewed and another desalination plant could be developed “as necessary when the technology is proven".
Super sludge – a new wave of capacity
As well as boosting drinking water supplies, Hong Kong's wastewater treatment is not being left untouched. Each day around 800 tonnes of sludge is produced by Hong Kong's 11 sewage treatment plants, with much of it dumped in landfills.
As a result, the 2000 tonnes/day sewage sludge treatment plant is due to be commissioned early next year that will produce over 20MW of electricity. Procured under a design-build-operate (DBO) contract, design consultants Arup says the $660 million project will be the largest “sewage sludge incinerator in the world".
The idea is for the facility to be self-sustaining: heat generated in the incinerators will be recovered for power generation. Surplus power will be exported to the regional electricity grid. Also, rainwater will be collected for non-potable use and wastewater will be treated and reused onsite.

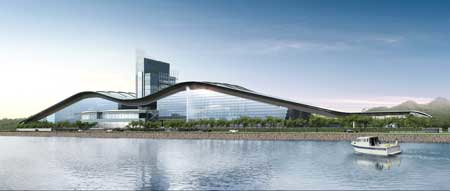

Operation of the plant, under a 15-year contract, will be jointly undertaken by Veolia Water and Veolia Environmental Services, and will generate average consolidated annual revenue of 20 million euros. The wavy shape of the building is inspired by the sea infront and the architectural design was provided by French architects, Vasconi.
The Harbour Area Treatment Scheme (HATS) Stage 2A Upgrading Works is another multi-disciplinary infrastructure project worth HK$15 billion to improve Victoria Harbour's water quality. The project will provide additional facilities to divert wastewater from Victoria Harbour to Stonecutters Island Sewage Treatment Works (SCISTW) for “chemically-enhanced primary treatment and disinfection".
Capacity of the SCISTW will be increased and a new pumping station will contain eight 2.5 MW centrifugal pumps, each rated at 4 m3/s.
The pollutant levels will also be further reduced. In particular, sewage pathogens (E.coli) will be reduced by 90% in the harbour environment after disinfection facilities are in place. Toxic ammonia will be further reduced by an average of 10%, and nutrients in terms of total inorganic nitrogen and phosphorus (which in rich supply can promote excessive algal growth) by a further 5% and 8%, respectively. The dissolved oxygen level is also expected to further increase by 5%.
Hong Kong's Drainage Services Department says “all statutory procedures, including the approval of Environmental Impact Assessment" have been completed. It is expected that the whole of Stage 2A will be commissioned by 2014-2015.
While Hong Kong has been largely reliant upon China for its water resources in the past, plans are in place to make it more water independent. The new Tseung Kwan O desalination plant can take lessons from Asian water hub Singapore's experience when it comes to using the latest technologies in desalinating water.
Furthermore, once complete the HATS and sludge incinerator developments will give Hong Kong modern, cutting edge wastewater treatment with a design that's futureproof.
Author's note: Tom Freyberg is chief editor of WWi magazine. For more information on this story, please contact: [email protected]
