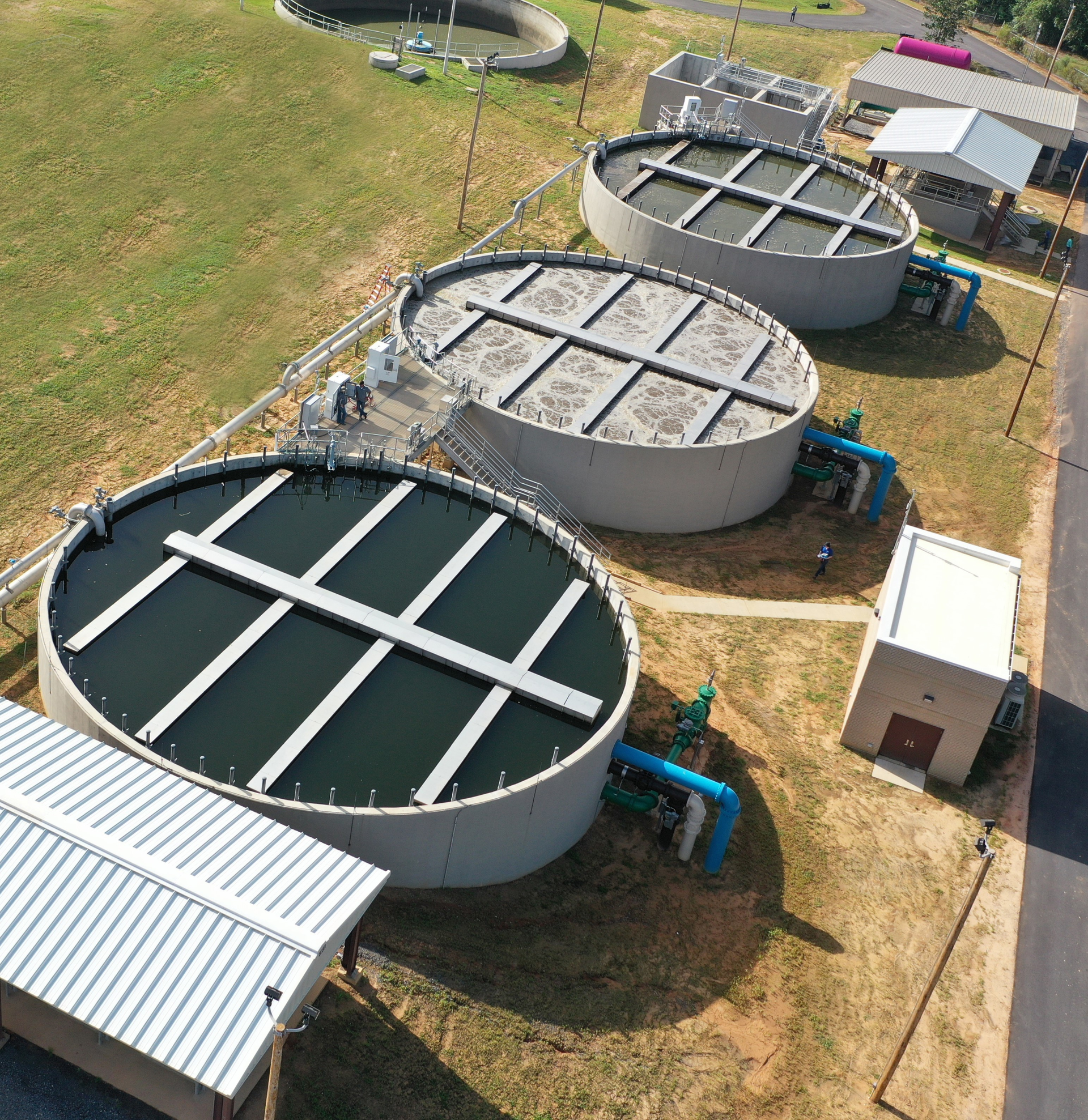

AquaNereda® represents a step-change in the wastewater treatment industry. The Wolf Creek system consists of three aerobic granular sludge (AGS) reactors with downstream polishing by AquaDisk® Pile Cloth Media Filters to produce Class B reuse-quality effluent. Since its January 2020 start-up, the plant has consistently met effluent limits. Although not currently required to achieve nutrient objectives, the inherent biological nutrient removal of AGS provides the capability to easily meet these in the future.
AquaNereda® was highly appealing as an innovative approach to secondary treatment for a number of reasons:
• The innate BNR capabilities provided by the layered microbial community of the granules enables the system to meet future total nitrogen and total phosphorus limits.
• The excellent setting properties of AGS allow for
MLSS of 8 g/L or higher, significantly reducing foot-
print requirements.
• AquaNereda® provides the lowest lifecycle cost compared to other processes.
Startup and Granulation
The system was seeded with CAS from the site’s existing oxidation ditches. Granulation was rapid with granule diameters greater than 600 μm measured just one month after startup and greater than 2,000 μm (10x larger than the minimum diameter to be considered AGS) observed after six months. By September 2020, the system had achieved the target Sludge Volume Index 5/30 ratio of 1.2, indicating excellent settling properties (see image).
Footprint and Energy
The AquaNereda® technology allows for significant footprint and energy reduction when compared to conventional processes:
• With its high operating MLSS and enhanced settling, the owner will be able to expand treatment capacity to an average flow of 10 MGD within the existing site compared to only 3.5 MGD with the oxidation ditch process.
• Reduced equipment needs and more efficient aeration contribute to a specific energy consumption rate of less than 0.3 kW-hr/m3 resulting in an overall power cost reduction of approximately 40%.
Customer Satisfaction
Aqua-Aerobic Systems is dedicated to ensuring customer satisfaction. Our commitment to producing quality equipment and process designs along with superior customer service has led to a happy customer in Foley, Ala.
“The AquaNereda® process was selected in order to future-proof our investment for wastewater treatment for the next 25 years,” Lee Kibler, superintendent of water and wastewater operations at Riviera Utilities, said. “Granular sludge is the wave of the future. Aqua-Aerobic is an outstanding supplier and highly invested in the future development of this technology in North America.”
The Riviera Utilities WWTP Upgrade received distinction for Wastewater Project of the Year at the 2021 Global Water Awards. WW
Aqua-Aerobic Systems Inc. provides advanced solutions in aeration and mixing, biological processes, cloth media filtration, membranes, disinfection and process control. Learn more at www.aqua-aerobic.com.
